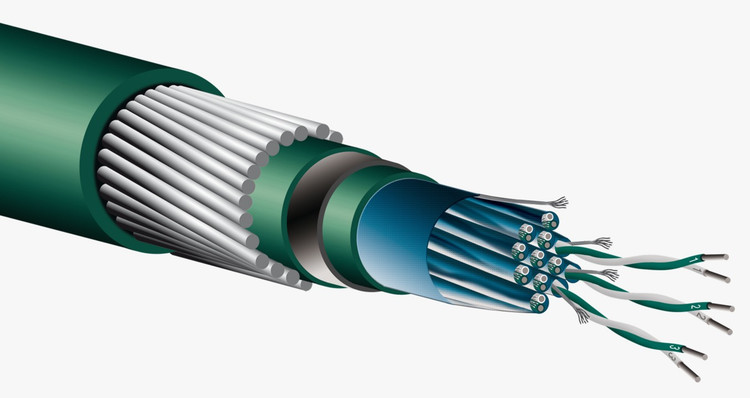

Kx 10X2X0.5 PVC-IS-OS-PVC HT-SWA-PVC HT D.27 (450/750V)

Stranded conductors
Extension cable type Kx
No. of wires per wire diameter . 7X0,32
Colour code according to IEC (+) Gree, (-) White
Alloy calibration according to ASTM E 230 class 2
Conductor insulation: PVC HT105°C (Nominal diameter:2.60 mm)
Core laying_up: conductors twisted in pairs
Pair id.: numberprinted isolated conductors
Pair screen: aluminium bonded polyester tape with tinplated copper 7x0.30 drain wire
Global twist
Global screen: aluminium bonded polyester tape with tinplated copper 7x0.30 drain wire
Inner jacket: PVC HT105°C - Green
Armour: galvanized steel wire armour (Wire diameter:0.90 mm)
Outer jacket: PVC HT105°C - Green
Nominal diameter : 27 mm (+/-3)
- IEC60332.3.24 cat.C
Nominal net weight: Kg/Km 1004.5
Standard tests:
Dielectric test core/core 1000 Vdc
Dielectric test core/screen 1000 Vdc
Dielectric test core/armour 1000 Vdc
Insulation resistance: > 20 Mohm/Km
Visual & Dimensional test
Continuity test
