آمپلی فایر فشار هوا

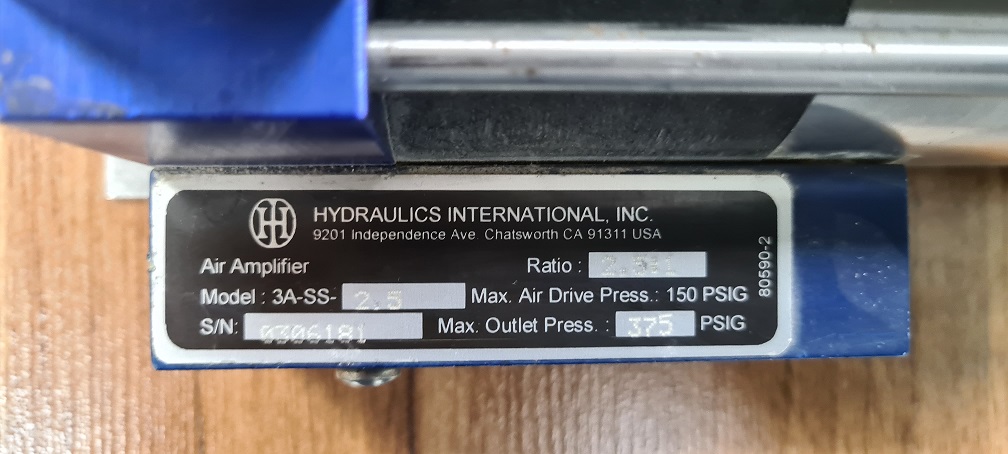

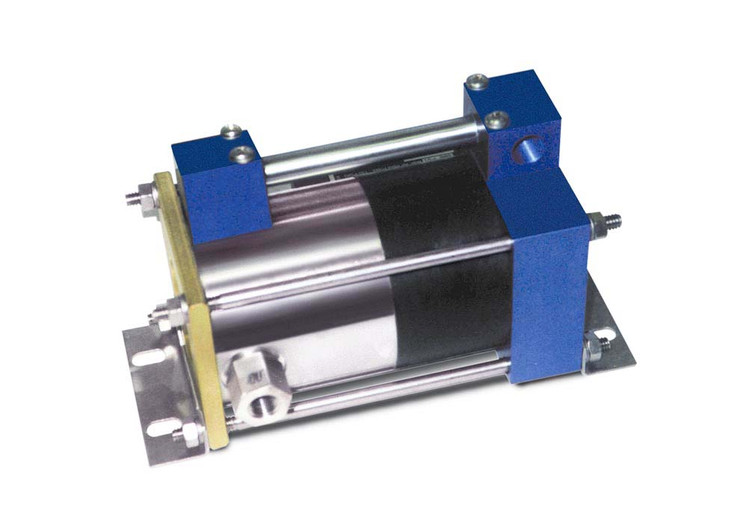

Air amplifier 3A-SS-2.5
توضیحات
Maximum Pressure. Weight LBS (KG), Volume Displacement Per Cycle IN3 (CM3), Drive Section PSI (BAR), Boost Section PSI (BAR).
نقد و بررسی
| Drive type | pneumatic: single air drive section |
| Gas section type: | single piston, single acting conbined with air drive |
| Number of compression stages | 1 |
| Amplification factor Famp | 2.5 |
| Inlet air pressure range PIN | 3.5 ... 10 bar 50 ... 150 PSI |
| Maximum outlet air pressure POUT.MAX | 27.6 bar 400 PSI |
| Approximate stall point POUT= Famp×PIN | POUT= 2,5×PIN |
| Displacement per cycle | 43.6 cm3 2.66 in3 |
| Maximum available outlet air flow | 240 l/min |
| Average available gas flow | 10 ... 100 l/min |
| Efficiency index | ★ ☆ ☆ ☆ ☆ |
| Temperature range (standard) | - 53 °С ... + 135 °С - 65 F ... + 275 F |
| Temperature range (Viton) | - 40 °С ... + 232 °С - 40 F ... + 450 F |
| Dimensions L×W×H | 207 mm × 127 mm × 112 mm 8.15" × 5.00" × 4.39" |
| Combined air Inlet | 1/4" NPT |
| Air Outlet | 1/4" NPT |
| Air Drive metallic parts | Aluminium - standard SS - on request |
| Air Drive seals | Buna - standard Viton - modification -V |
| Gas end metallic parts | Aluminium - standard |
| Gas end seals | Viton - standard |
| Air, Nitrogen | basic model |
| Pure / ultra-pure gases | not applicable |
| Oxygen O2 | not applicable |
| Helium (He) | not applicable |
| Hydrogen (H2) | not applicable |
| Сarbon dioxide (CO2) | not applicable |
| Dangerous, flammable gases | not applicable |
